Technical Details GD119B Series

Brand: GVDA

Model name: GD119B

DC Voltage:600mV/6V/60V/600V ±(0.5%+3)

AC Voltage:6V/60V/600V ±(0.8%+3)

DC Current:600mA/6A/10A ±(1.2%+3);

AC Current:600mA/6A/10A ±(1.2%+3);

Resistance:600/6k/60k/600kOHM ±(1.0%+5);

6m/60mOHM ±(1.5%+10)

Capacitance:6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)

Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)

Duty:1.0%-99.0% ±(1.0%+3)

Temperature :-40~1000°C; -40-1832°F 2°C

Counts:6000counts

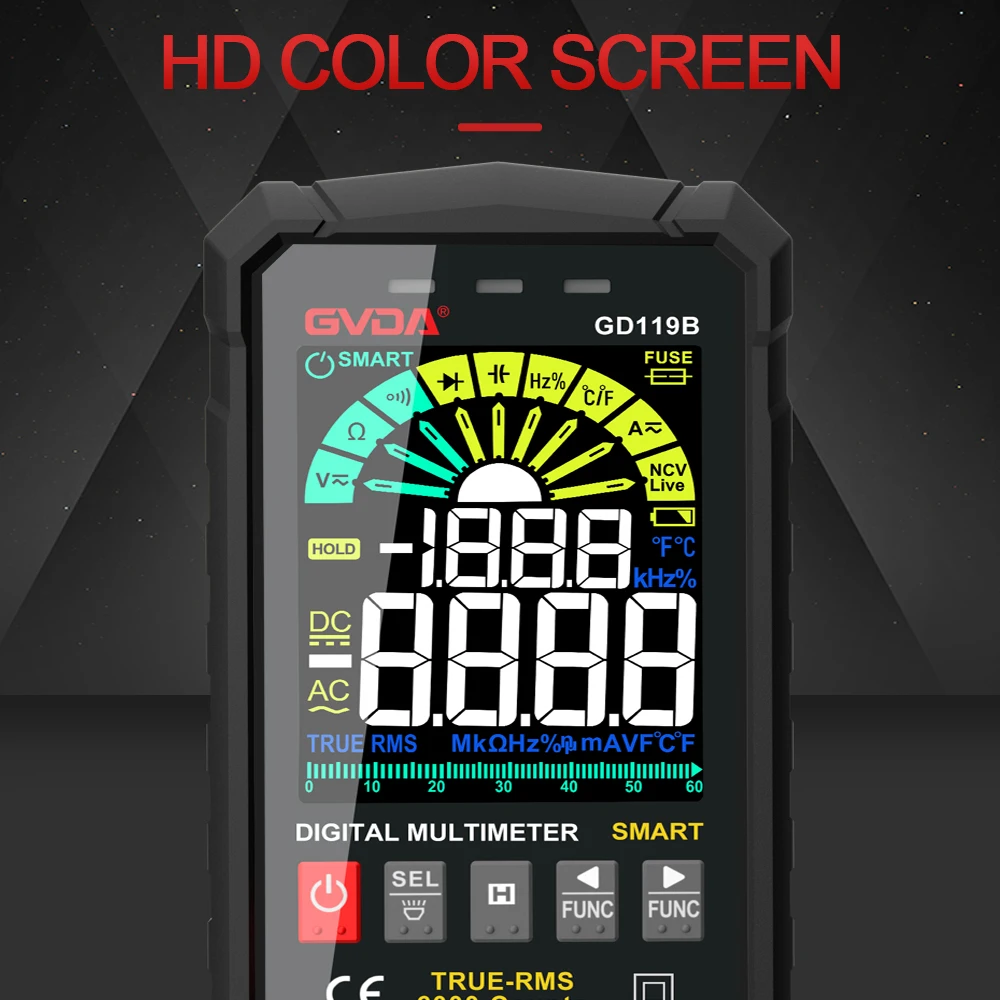

Display:HD Colour Display

Analog Bar/ Gear Display: Yes

Smart Function(AC/DC Voltage,resistance and continuity):yes

Auto Identification of current input:yes

Relative Measurement:yes

Max/Min/Avg.:yes

NCV/Live/Continuity test:yes(sound and light alarm)

Continuity: yes <50ohm

Diode test:yes(sound alarm) (0-3V)

Bargraph/Data hold /True RMS:yes

Fuse Burning Prompt:yes

Input Jack LED indication:yes

Low battery indication:yes

Auto power off：yes

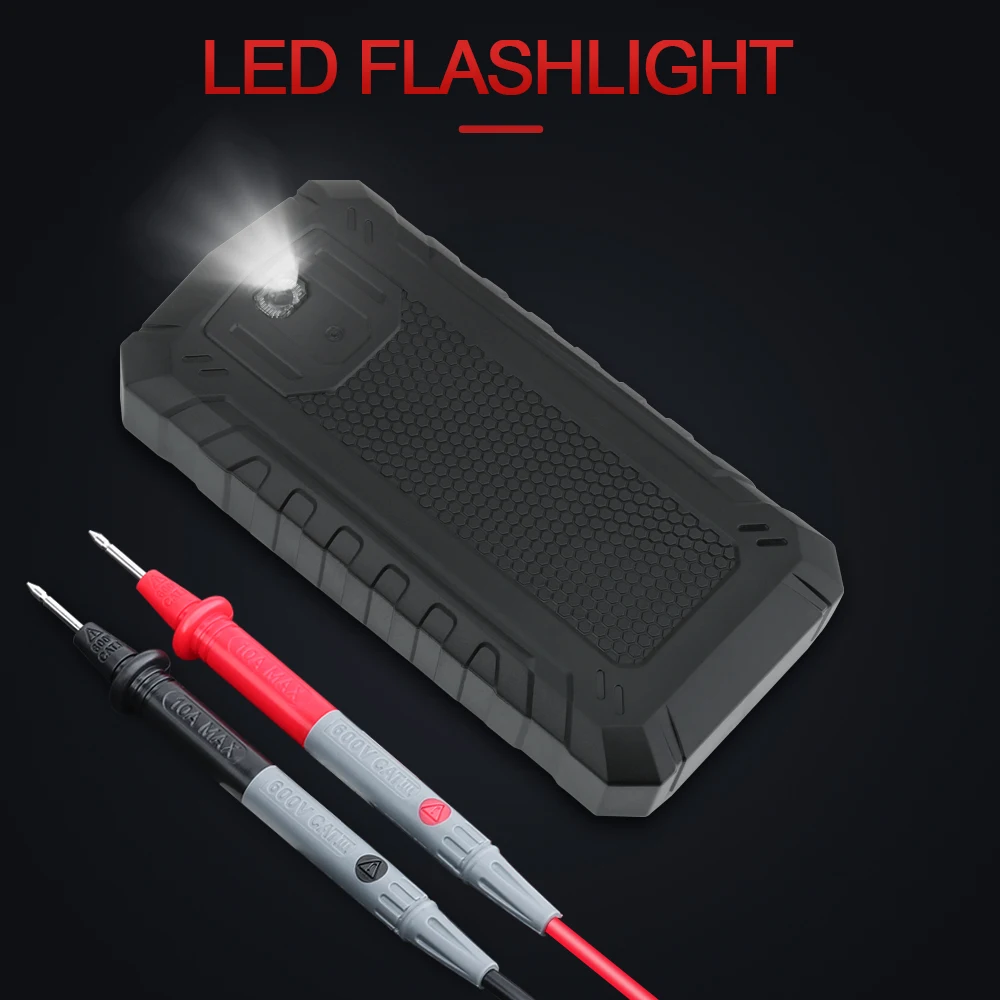

Flashlights:yes

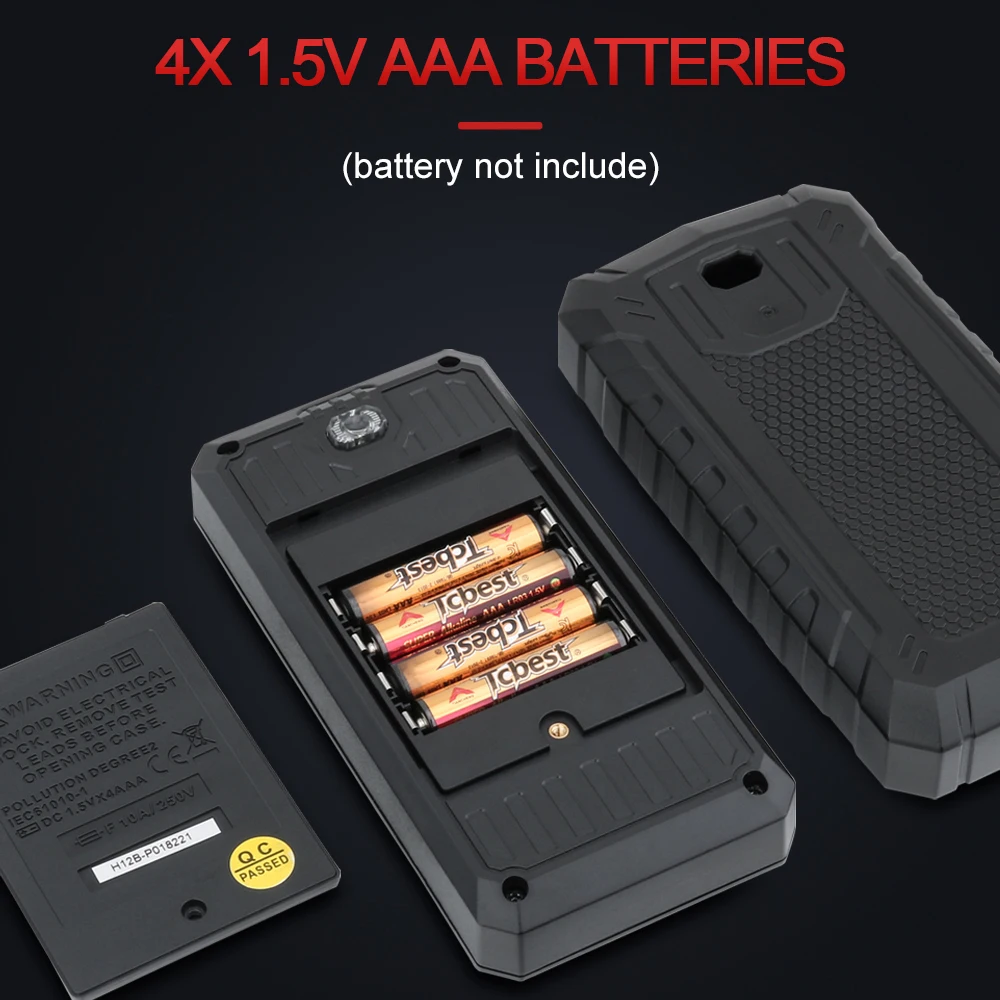

Power supply:4pcs AAA Batteries (not include)

Product Size:113x68x19mm

Package Size:170x95x50mm

Package Weight:about 400g

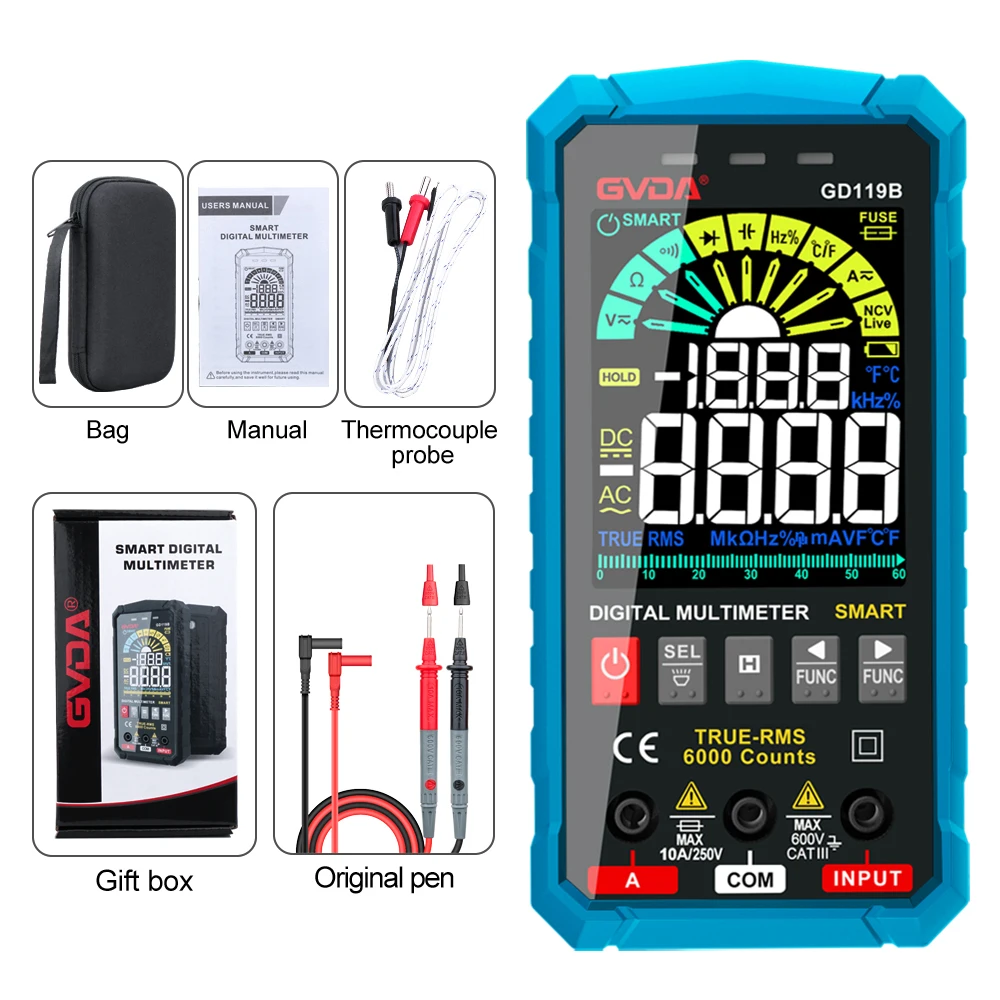

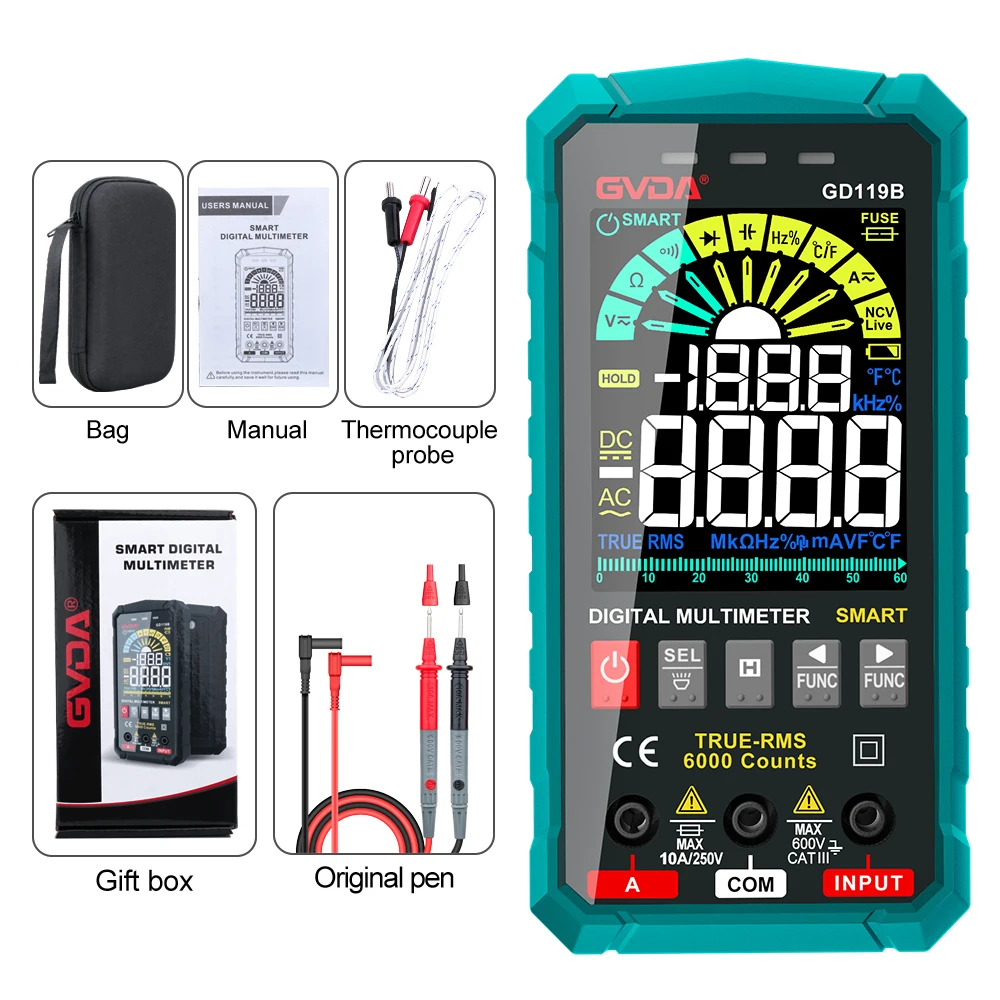

Packing Contents

1pc Multimeter

1pc pen cable

1pc cloth bag

1pc Thermocouple probe

Below is Product Details for GD119B Series ( Color LCD Display)
